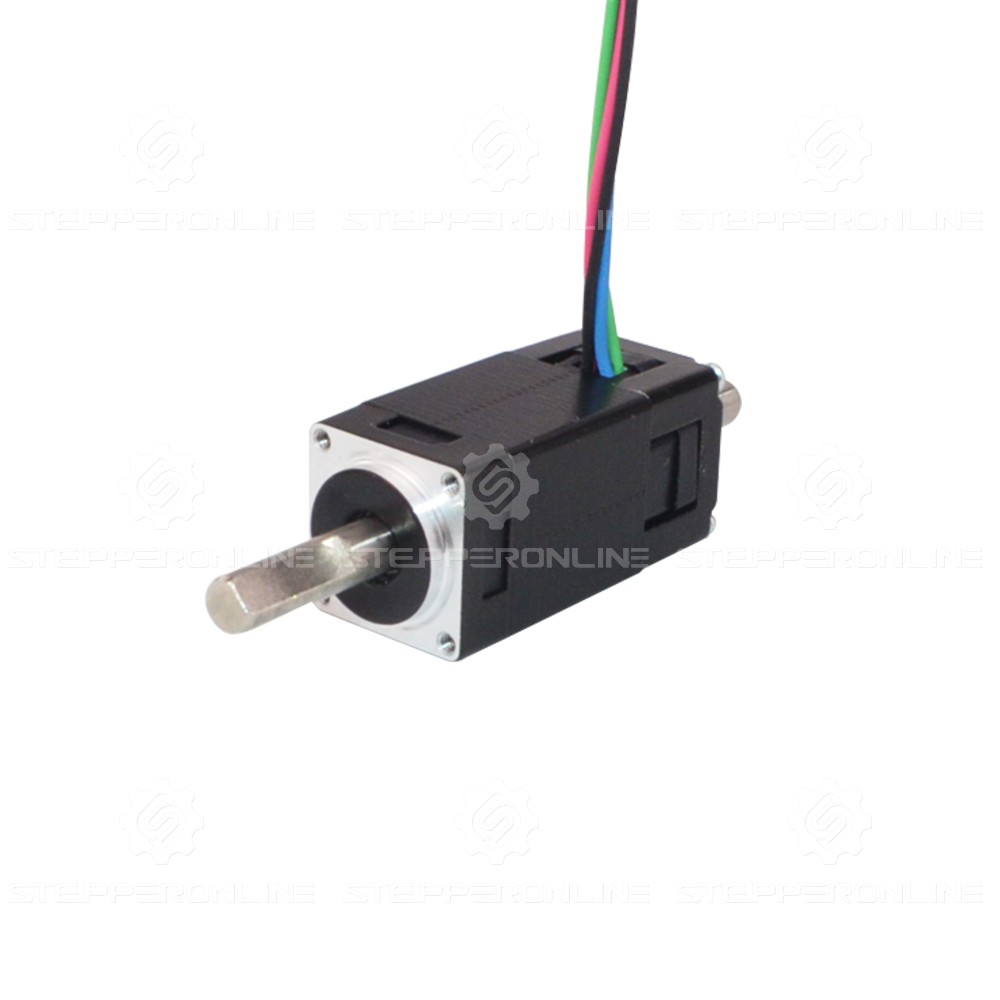

Dual Shaft Nema 6 Bipolar 1.8deg 0.58Ncm(0.82oz.in) 0.3A 14x14x30mm 4 Wires
-
₪670
Dual Shaft Nema 6 Bipolar 1.8deg 0.58Ncm(0.82oz.in) 0.3A 14x14x30mm 4 Wires
-
₪670
- מותג: Apple
- קוד מוצר: 6HS12-0304D
- זמינות: במלאי
Electrical Specification
-
Manufacturer Part Number: 6HS12-0304D
-
Motor Type: Bipolar Stepper
-
Step Angle: 1.8deg
-
Holding Torque: 0.58Ncm(0.82oz.in)
-
Rated Current/phase: 0.3A
-
Phase Resistance: 22ohms
-
Inductance: 4.2mH±20%(1KHz)
-
Insulation Class: B 130°C[266°F]
Physical Specification
-
Frame Size: 14 x 14mm
-
Body Length: 30mm
-
Shaft Diameter: Φ4mm
-
Front Shaft Length: 15mm
-
D-cut Shaft Length: 10mm
-
Rear Shaft Length: 10mm
-
Number of Leads: 4
-
Cable Length: 300mm
-
Weight: 30g
Connection
|
A+ |
A- |
B+ |
B- |
|
Black |
Green |
Red |
Blue |
|
Product Type |
|
|
Product Type |
Hybrid Stepper Motor |
|
Electrical Specification |
|
|
Bipolar/Unipolar |
Bipolar |
|
Has Torque/Thrust Curve? |
No |
|
Holding Torque(Ncm) |
0.58 |
|
Holding Torque(oz.in) |
0.82 |
|
Inductance(mH) |
4.2 |
|
Phase Resistance(ohms) |
22 |
|
Rated Current(A) |
0.3 |
|
Step Angle(deg.) |
1.8 |
|
Physical Specification |
|
|
Body Length(mm) |
30 |
|
Frame Size(mm) |
Nema 06 (14 x 14) |
|
Inventory Method |
Dedicated Inventory |
|
IP Rating |
40 |
|
Lead Length(mm) |
300 |
|
No. of Lead |
4 |
|
Output Shaft Type |
D |
|
Product Series |
S |
|
Shaft Diameter(mm) |
4 |
|
Shaft Length(mm) |
15 |
|
Single Shaft/Dual Shaft |
Dual Shaft |
