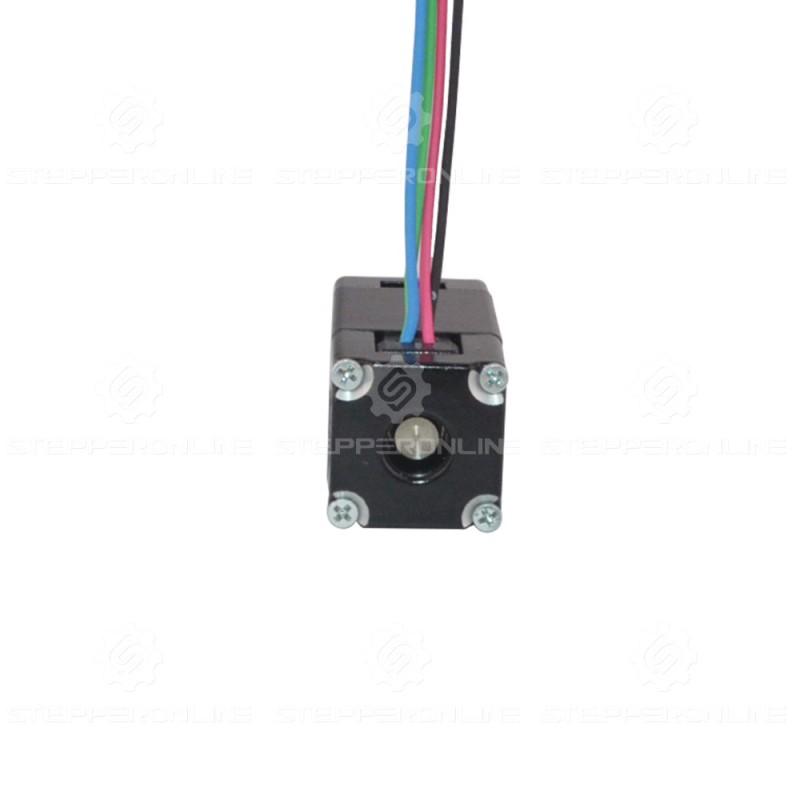

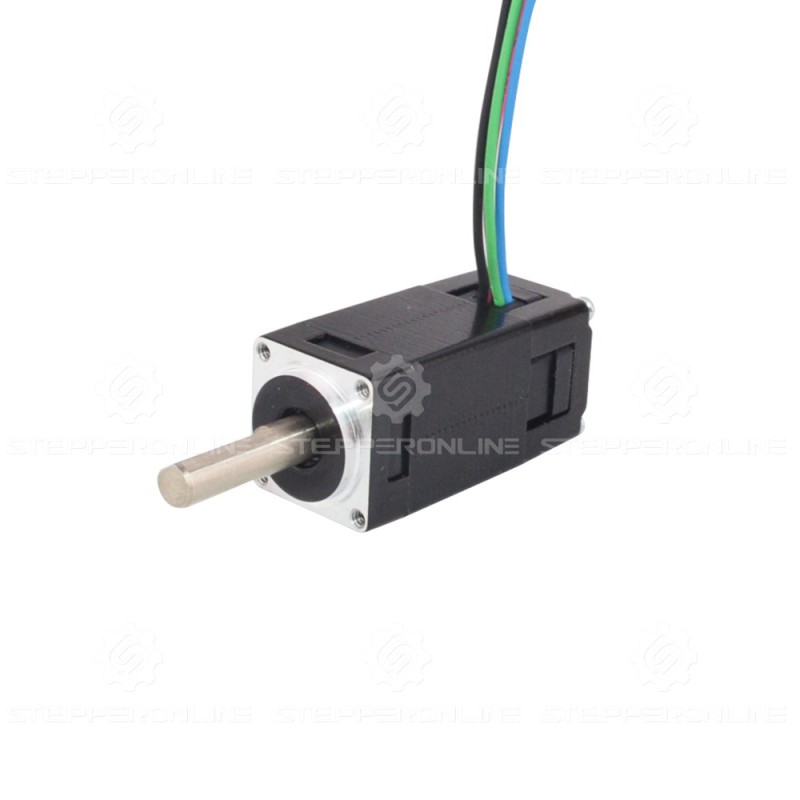

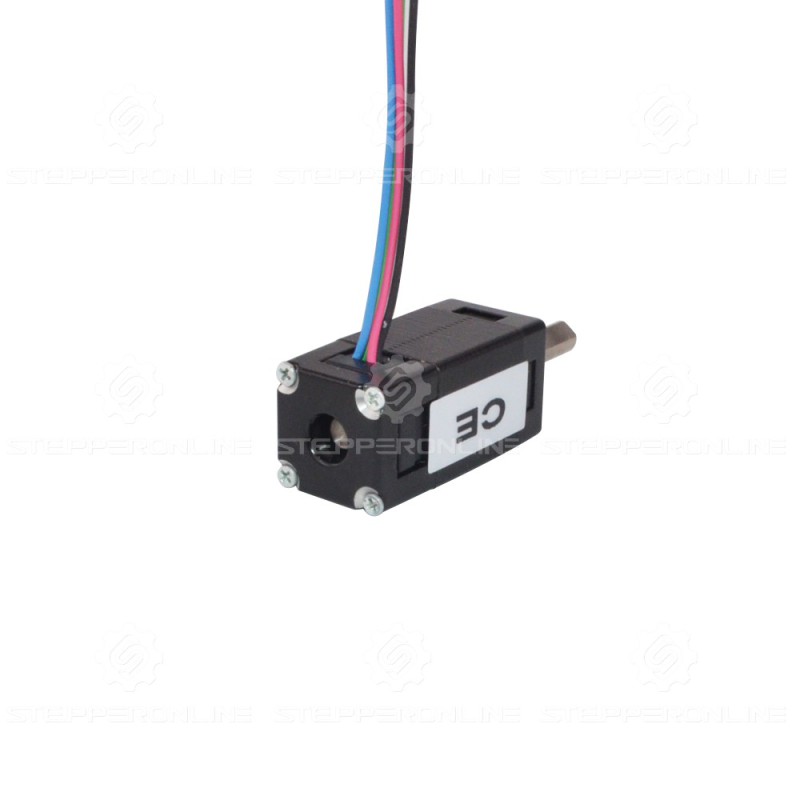

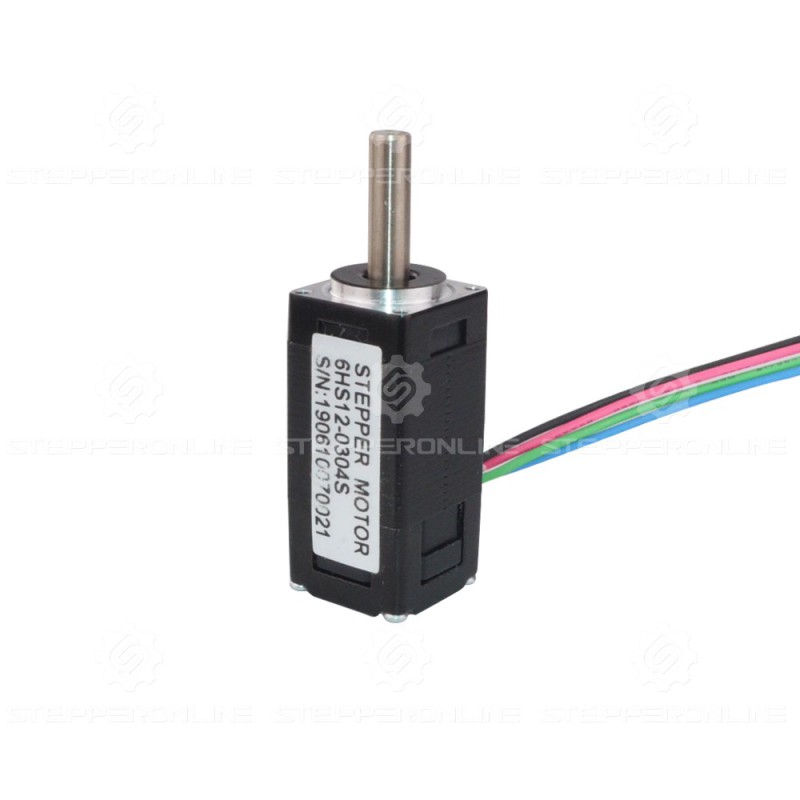

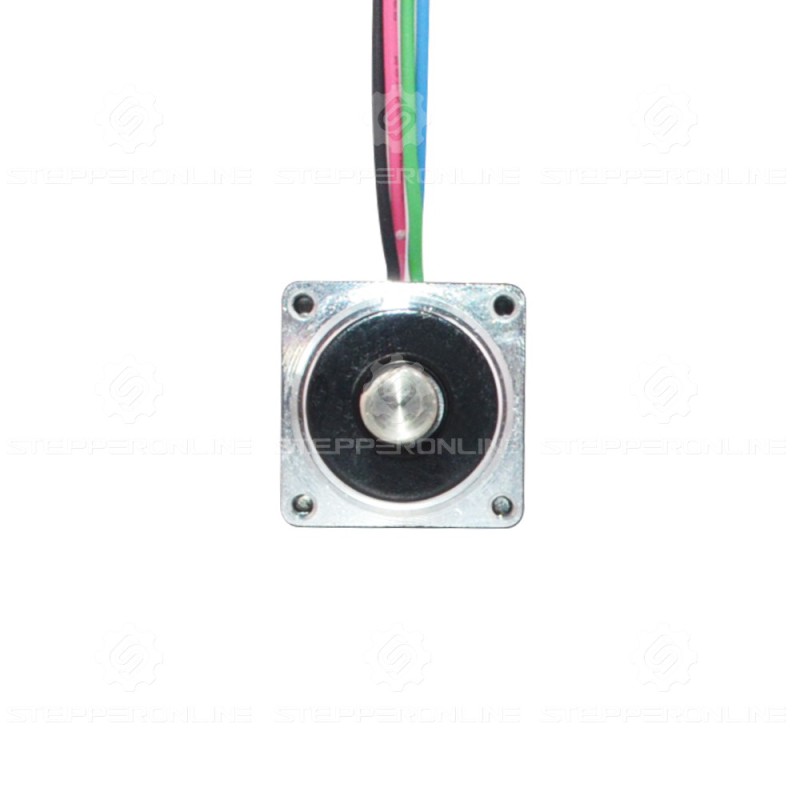

Nema 6 Bipolar 1.8deg 0.58Ncm(0.82oz.in) 0.3A 14x14x30mm 4 Wires

Nema 6 Bipolar 1.8deg 0.58Ncm(0.82oz.in) 0.3A 14x14x30mm 4 Wires

Electrical Specification

  • Manufacturer Part Number: 6HS12-0304S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.58Ncm(0.82oz.in)
  • Rated Current/phase: 0.3A
  • Phase Resistance: 22ohms
  • Inductance: 4.2mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 14 x 14mm
  • Body Length: 30mm
  • Shaft Diameter: Φ4mm
  • Shaft Length: 15mm
  • D-cut Shaft Length: 10mm
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight: 30g

Connection


A+
A-
B+
B-
Black
Green
Red
Blue













Product Type
Product TypeHybrid Stepper Motor
Electrical Specification
Bipolar/UnipolarBipolar
Has Torque/Thrust Curve?Yes
Holding Torque(Ncm)0.58
Holding Torque(oz.in)0.82
Inductance(mH)4.2
Phase Resistance(ohms)22
Rated Current(A)0.3
Step Angle(deg.)1.8
Physical Specification
Body Length(mm)30
Frame Size(mm)Nema 06 (14 x 14)
Inventory MethodDedicated Inventory
IP Rating40
Lead Length(mm)300
No. of Lead4
Output Shaft TypeD
Product SeriesS
Shaft Diameter(mm)4
Shaft Length(mm)15

Single Shaft/Dual Shaft    Single Shaft
