Raspberry Pi 5 is the latest generation flagship product in the Raspberry Pi series, following the success of the Raspberry Pi 4. It provides a 2-3x increase in CPU performance over the previous generation. Onboard dual CSI/DSI ports and USB connectors which are provided by the Raspberry Pi RP1 I/O controller. And this is the first Raspberry Pi computer using silicon built in-house at Raspberry Pi.

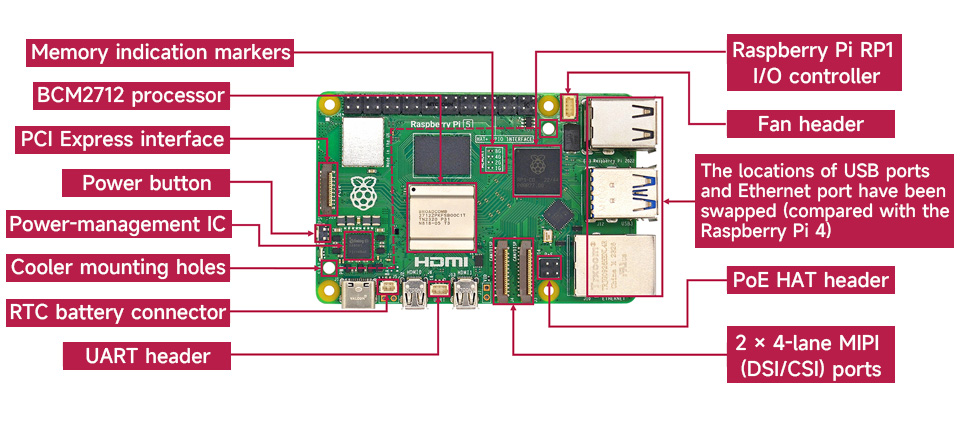

Key features include:
2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache
VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2
Dual 4Kp60 HDMI® display output
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (options for 2GB/4GB/8GB/16GB)
2.4GHz/5GHz dual-band 802.11ac Wi-Fi®
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
TF card slot, with support for high-speed SDR104 mode
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
2 × 4-lane MIPI DSI/CSI port
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi standard 40-pin header
Real-time clock (RTC), powered from external battery (not included)
Onboard power button for power on/off without disconnecting power adapter
| Module | Raspberry Pi 4B | Raspberry Pi 5 |
|---|---|---|
| CPU | Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, 1.8GHz frequency | Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, 2.4GHz frequency |
| RAM | Options for 2GB/4GB/8GB | Options for 2GB/4GB/8GB/16GB |
| Interfaces | 2.4GHz and 5.0GHz 802.11a dual-band WiFi | 2.4GHz and 5.0GHz 802.11a dual-band WiFi |
| Bluetooth 5.0, BLE | Bluetooth 5.0, BLE | |
| Gigabit Ethernet | Gigabit Ethernet | |
| N/A | 1 × PCle 2.0 interface | |
| 2 × USB 3.0, 2 × USB 2.0 | 2 × USB 3.0, supporting simultaneous 5Gbps operation 2 × USB 2.0 | |
| Raspberry Pi standard 40PIN GPIO header | Raspberry Pi standard 40PIN GPIO header | |
| 2 × micro HDMI interface (up to 4Kp60) | 2 × micro HDMI interface (up to 4Kp60) | |
| 2-lane MIPI DSI, 2-lane MIPI CSI | 2 × 4-lane MIPI (DSI/CSI) | |
| 4-pole stereo audio and composite video port | N/A | |
| Operating system & data storage | TF card slot | TF card slot, with support for high-speed SDR104 mode |
| Power Input | 5V/3A DC (power via USB-C/GPIO) | 5V/5A DC (power via USB-C, support PD) |
| PoE | requires separate PoE+ HAT | requires separate new PoE+ HAT |
| RTC | N/A | Onboard RTC and RTC battery connector |
